Fabrication of aluminium airbridges for microwave interconnects on lithium niobate on Damascene silicon nitride photonic chips

Here we discuss the wafer-scale fabrication process flow of aluminium airbridges for microwave (MW) interconnects on lithium niobate on Damascene silicon nitride (LNOD) photonic chips. We also discuss the subsequent chip release procedure that preserves the bridges allowing for safe release of these delicate structures.

Version
Version 1.1
Date
1 year, 1 month ago
Lab
EPFL - LPQM
Comments
0
Viewed
727
Downloads
286
Liked
1


Monolithically integrated InGaAs microdisks on Si for nanophotonics

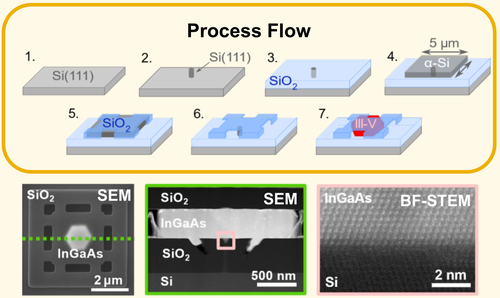

This work was presented at the Nanofabrication Photonics Online Meetup, 16-18 May 2021. Template-assisted selective epitaxy enables the local integration of group III-V semiconductors on Si with high material quality for nanophotonic applications. Here we demonstrate evidence of room temperature lasing at 1530 nm for a monolithically integrated InGaAs whispering gallery mode cavity on Si with a thickness of 300 nm and a diameter of 1.5 µm. These devices can potentially be scaled down further ...

Version
Version 1.0
Date
2 years, 5 months ago
Lab
IBM Research Zurich - Materials Integration and Nanoscale Devices
Comments
0
Viewed
1391
Downloads
525
Liked
3

Transition metal dichalcogenide metamaterials with atomic precision

Here we will discuss our novel anisotropic wet-etching method that allows scalable fabrication of TMD metamaterials with atomic precision, combined with traditional nanolithography techniques.[1] We show that TMDs can be etched along certain crystallographic axes, such that the obtained edges are atomically sharp and exclusively zigzag-terminated. This allows us to fabricate interesting hexagonal nanostructures of predefined order and complexity, including a few nanometer thin nanoribbons and nanojunctions.

Version
Version 1.0
Date
2 years, 6 months ago
Lab
DTU - Quantum Light Source
Comments
0
Viewed
1317
Downloads
537
Liked
3

Critical point drying of suspended structures after wet etch

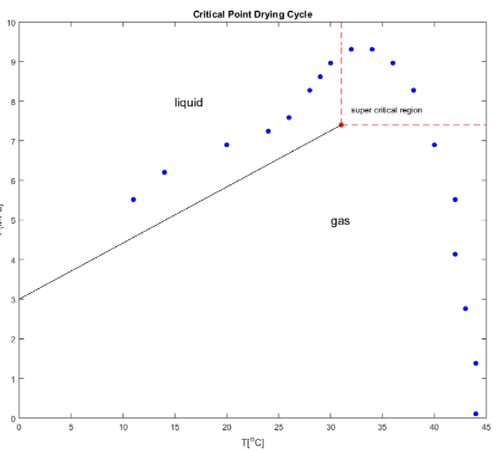

In this report I monitor a full successful cycle of critical point drying (CPD) run for drying MEMS sensors after wet release using KOH etching. The pressure and temperature of the CPD tool (Tousimis) is monitored during the process and plotted in a P-T diagram with \mathrm{CO_2} critical point. A few notes for higher yield in the drying process are mentioned in this report as well.

Version
Version 1.0
Date
3 years, 4 months ago
Lab
EPFL - LPQM
Comments
7
Viewed
2326
Downloads
817
Liked
2
