Transition metal dichalcogenide metamaterials with atomic precision

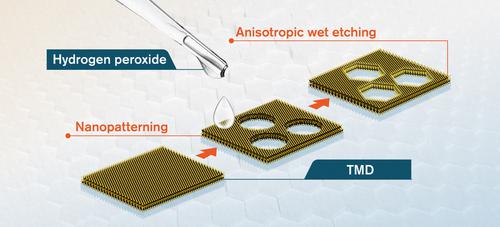

Here we will discuss our novel anisotropic wet-etching method that allows scalable fabrication of TMD metamaterials with atomic precision, combined with traditional nanolithography techniques.[1] We show that TMDs can be etched along certain crystallographic axes, such that the obtained edges are atomically sharp and exclusively zigzag-terminated. This allows us to fabricate interesting hexagonal nanostructures of predefined order and complexity, including a few nanometer thin nanoribbons and nanojunctions.

Version
Version 1.0
Date
2 months ago
Lab
DTU - Quantum Light Source
Comments
0
Viewed
291
Downloads
102
Liked
2

Fabrication of patterned silicon nitride nanomembranes at the LKB

Thin silicon nitride nanomembranes are attracting growing attention following a novel fabrication method which consists in patterning them with a phononic crystal. In engineering the vibrational mode profile, the dominant mechanisms of loss, radiation loss and intrinsic material loss, are simultaneously addressed and mitigated. The fabrication method employed by the optomechanics group at the Laboratoire Kastler Brossel is here presented, only employing basic lithography techniques and wet etching processes.

Version
Version 1.1
Date
9 months, 1 week ago
Lab
Sorbonne - Kastler-Brossel
Comments
0
Viewed
1465
Downloads
391
Liked
1

Critical point drying of suspended structures after wet etch

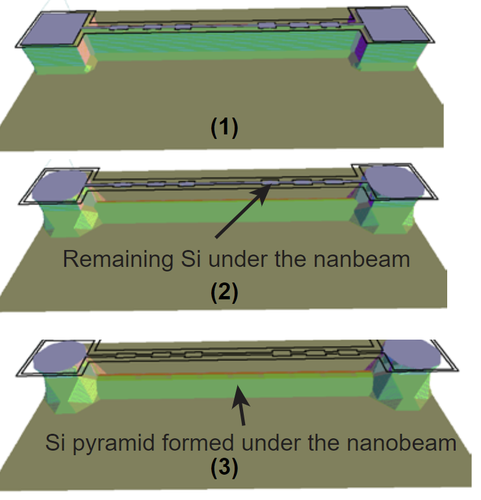

In this report I monitor a full successful cycle of critical point drying (CPD) run for drying MEMS sensors after wet release using KOH etching. The pressure and temperature of the CPD tool (Tousimis) is monitored during the process and plotted in a P-T diagram with \mathrm{CO_2} critical point. A few notes for higher yield in the drying process are mentioned in this report as well.

Version
Version 1.0
Date
1 year ago
Lab
EPFL - LPQM
Comments
7
Viewed
1464
Downloads
417
Liked
2

Bulk and Sleeve Electron Beam Lithography for Silicon Nitride Photonic Crystals

This is a method to improve the quality of lithography - in particular electron beam lithography (EBL). During an EBL exposure the electrons undergo different scattering processes. One scattering process that plays an important role is the back scattering of the electrons from the substrate or different stacks of thin film present in the exposure stack. As a result the actual dose that the resist sees is quite different that the original exposure dose. This ...

Version
Version 1.0
Date
1 year, 1 month ago
Lab
EPFL - LPQM
Comments
0
Viewed
1214
Downloads
405
Liked
1
